DOIT WiFi UNO R3 Compatible with Arduino UNO R3 Development Board WiFi Shield from ESpduino ESP8266 ESP-13 DIY RC Toy Tank Car

0 stars, based on 0 reviews
FREE SHIPPING on all orders over $30!
Price:
$9.56$9.56 / [ 1 piece / Lot ]
Wholesale Price:
Quantity Price
1+ $9.56
10+ $8.60
Quantity: - + 184 items available

Item specifics

Use:
Remote Control Peripherals/Devices:
Receivers
Brand Name:
SZDoit
Technical parameters:
Value 2
For Vehicle Type:
Cars
Tool Supplies:
Cutting
RC Parts & Accs:
Connectors/Wiring
Four-wheel Drive Attributes:
Assemblage
Upgrade Parts/Accessories:
Gear
Material:
Metal
Model Number:
wheel

 (2)



  • ESPduino is developed by Doit company based on the ESP8266 ESP-13, which can be compatible with UNO R3 developmen board.
  • By using the ESP8266 WiFi and MCU, ESPduino can work with the support of WiFi. Compared to the traditional UNO development baord, users don't have to buy another WiFi development board.
  • More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki





     ESPduino: 1pcs



 (2)

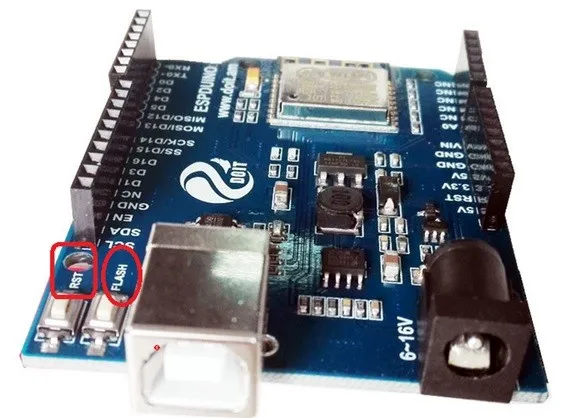

     When you want to upload the code to the ESPduino development board, please do by the following method:
Press the FLASH button firstly and don't loose your hand, then Press RST button about 6s. Then loose your hand. After that, you can upload the code to the ESPduino development Board.
1

ESPduino IDE Installation
1. Download the IDE
en.doit.am/espduino

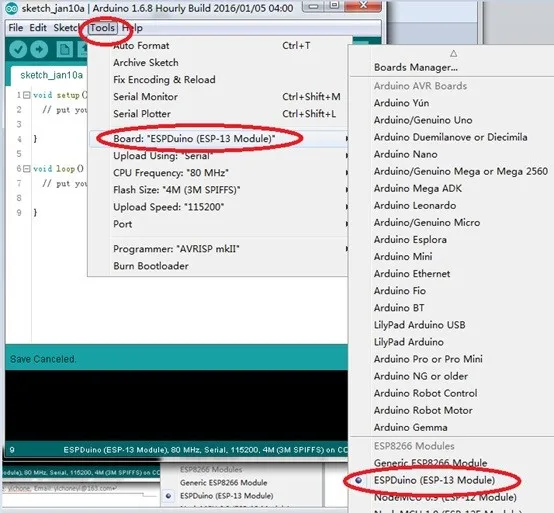

2. Choose the port by the computer
14524777914999

3. Open the IDE
1452477899818

4. Test the Blink
4

5. Upload the  code to ESPduino development board.
Press FLASH button (don't loose hand)->Press RST button (for about 6s)->Click "Upload".

Or
you can build up the  IDE by the following github link.
github.com/esp8266/#installing-with-boards-manager
Note that, the newest updated information, also can visit the above github link.



#include #include
const char* ssid = "Doit";
const char* password = "doit3305";

int timezone = 3;
int dst = 0;

void setup() {
  Serial.begin(115200);
  Serial.setDebugOutput(true);

  WiFi.mode(WIFI_STA);
  WiFi.begin(ssid, password);
  Serial.println("\nConnecting to WiFi");
  while (WiFi.status() != WL_CONNECTED) {
    Serial.print(".");
    delay(1000);
  }

  configTime(3 * 3600, 0, "pool.ntp.org", "time.nist.gov");
  Serial.println("\nWaiting for time");
  while (!time(nullptr)) {
    Serial.print(".");
    delay(1000);
  }
  Serial.println("");
}

void loop() {
  time_t now = time(nullptr);
  Serial.println(ctime(&now));
  delay(1000);
}


More details, please visit
bbs.doit.am/forum.php?mod=forumdisplay&fid=69
