Original DOIT WiFi Metal Tank T200 by Android/iOs Phone From ESPDUINO Development Kit with 2-way Motor & 16 Way Driven Shield

0 stars, based on 0 reviews
FREE SHIPPING on all orders over $30!
Price:
$122.56$122.56 / [ 1 piece / Lot ]
Color
  • Silver
  • Golden yellow
Wholesale Price:
Quantity Price
1+ $122.56
Quantity: - + 1000 items available

Item specifics

Type:
Tank
Features:
Remote Control,Flashing
Controller Battery:
other
Remote Distance:
other
Warranty:
other
State of Assembly:
Unassembled Kit
Warning:
other
Age Range:
> 14 years old
Brand Name:
SZDoit
Remote Control:
No
Model Number:
other
Charging Time:
other
Dimensions:
other
Control Channels:
2 Channels
Material:
Metal
Design:
other
Charging Voltage:
other
Action Time:
other
Controller Mode:
MODE1



Technical Specifications

Power Input

1) Motor Power(VM): 4.5~36V, can power separately;

2) Control Power (VIM): 4.5~9V(10V MAX), can power separately;

3) Module having shortcut module (connect VM and VIM), thus can use one-way power publicly (4.5~9V) to power control board and motor shield board;

  • Logic Working Current (Iss):≤60mA (Vi=L), ≤22mA(Vi=H);

  • Driving Working Current (Io): Io:≤1.2A;

  • Max Dissipation Power: 4W(T=90degree);

  • Control Signal Input Voltage: High voltage (2.3V≤VIH≤VIN); Lower voltage (-0.3V≤VIL≤1.5V);

  • Working Temperature: -25deg-+125deg

  • Driven Mode: Double-way large power H-bridge driven;

  • Support wireless 802.11 b/g/n standard;

  • Support STA/AP/STA+AP 3-types working mode;

  • Built-in TCP/IP protocol stack; Support multi-way TCP Client connection (5 MAX);

  • D0-D8, SD1-SD3: used as GPIO, PWM, IIC, and etc., Port-driven ability 15mA;

  • AD0: 1-channel ADC;

  • Power Input: 4.5V-9V (10VMAX); Support powered-USB; Provide USB-debug interface;

  • Working Current: continual send:≈70mA (200mA MAX) standby:<200uA;

  • Transmission Data:110-460800bps;

  • Support UART/GPIO data communication interface;

  • Support firmware by remote update;

  • Support Smart Link;

  • Working Temperature: -40-125deg;

  • Driven Mode: double-way big-power H-bridge driven;

  • Weight: about 310g (not including battery)

 (2)


  • ESPduino is developed by Doit company based on the ESP8266 ESP-13, which can be compatible with Arduino UNO R3 developmen board. By using the ESP8266 WiFi and MCU,

  • ESPduino supports WiFi. Compared to the traditional Arduino UNO development baord, users don't have to buy another WiFi development board.



Installation:



1. Download the Arduino IDE

http://

www.arduino.cc/en/main/software

2. Install the Arduino and Run

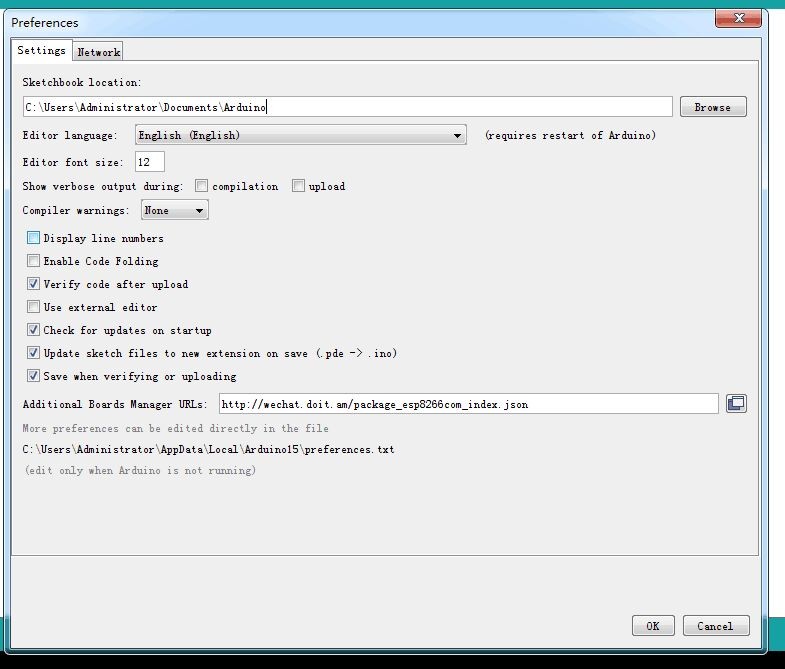

a) Open "File"->Preferences

ainstall1

b) input the following web address:

http://

wechat.doit.am/package_esp8266com_index.json

c) Tool->development board, and search ESP8266

3) Click "install"

If install the complete version with ESP8266, then can ignore the above steps.

ainstall2

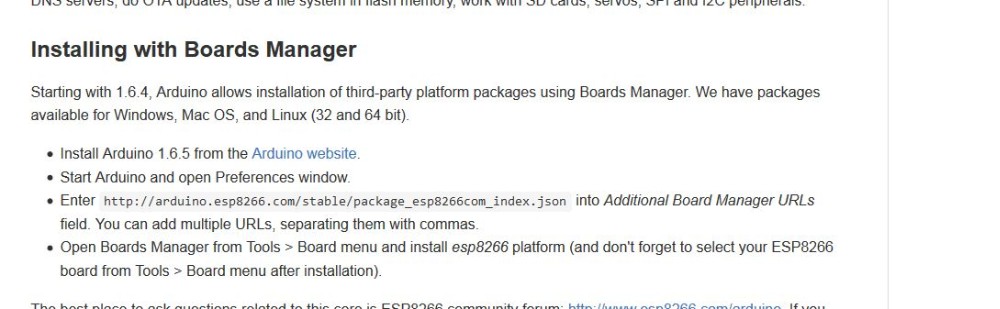

Download site:

https://

github.com/esp8266/Arduino



#include #include

const char* ssid = "Doit";

const char* password = "doit3305";



int timezone = 3;

int dst = 0;



void setup() {

  Serial.begin(115200);

  Serial.setDebugOutput(true);



  WiFi.mode(WIFI_STA);

  WiFi.begin(ssid, password);

  Serial.println("\nConnecting to WiFi");

  while (WiFi.status() != WL_CONNECTED) {

    Serial.print(".");

    delay(1000);

  }



  configTime(3 * 3600, 0, "pool.ntp.org", "time.nist.gov");

  Serial.println("\nWaiting for time");

  while (!time(nullptr)) {

    Serial.print(".");

    delay(1000);

  }

  Serial.println("");

}



void loop() {

  time_t now = time(nullptr);

  Serial.println(ctime(&now));

  delay(1000);

}

More details, please visit

http://

bbs.doit.am/forum.php?mod=forumdisplay&fid=69



 (2)



  • Noveland elegant appearance;

1) Reserve the space for 9g, MM95, MM96R gear;

2) Reserve for the intallation holes for UNO R3 and NodeMCU development board kit;

3) Reserve the space for robotic manipulator;

4) Design the LED light for the dark moving and brighten the light;

5) Add the 25mm and 37mm motor frame, can change the 4WD smart car;

  • Aluminum alloy;

1) The metal chassis is generated by aluminum alloy;

2) The bearing wheels and the driving wheels are metal;

3) The bearing wheelpiece is connected by the stainless steel and two bearings, which can let the bearing wheel is rotate freely with small frictions.

  • Solid structure;

1) The chassis can bearing the weight is about below 5kg; we test the 2.3kg;

2) All the chassis are metal, excluding the track (plastic).

  • Powerful force;

1) It is very powerful;

2) with Hall sensor and feedback;

  • Quickly,stability, flexibility;

  • Strong power;



 (2)



  • Name: T200 Intelligent track car/tank chassis

  • Material: aluminum alloy

  • Wheel: metal

  • Track: engineering plastic

  • Product size: about 300*220*55mm (length * width * height)

  • Weight: 1200g

  • Color: golden yellow/silver.

  • More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki








  • Chassis: 1 pcs

  • Driving wheels: 2 pcs

  • Bearing wheels: 6 pcs

  • Track: 2 pcs (can be changed the length)

  • DC motor: 2 pcs

  • LED light: 2 pcs

  • ESPDUINO development kit: 1 set

  • 18650 battery box: 1pcs

  • Screws: several

  • Screw tools: 3 pcs



 (2)

IMG_20160223_141652IMG_20160223_141706IMG_20160223_141807IMG_20160223_141827IMG_20160223_141848IMG_20160223_142232IMG_20160223_142304

HTB1ogBbKpXXXXXCXFXXq6xXFXXXl


-2_19V112V121_1



 (2)



1. Due to computer monitor and the actual shooting brightness and other reasons, there will be a certain color difference.
The final color please refer to our actual goods. Please know this before you buy it. Thank you !
2. The picture we show is 100% Real Object Photography.
3. The size may have 2-3cm differs due to the maunal measurement.
4. For  the shipping convenience, the product is unassembled.
